Billet Shearing


Hydraulic C Frame Manufacturers in India

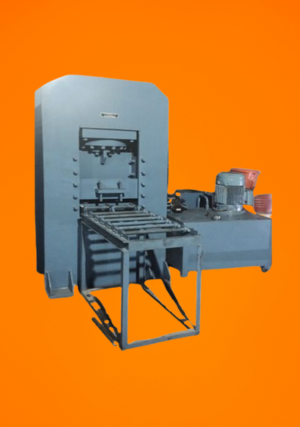

Cold Billet
Model Unit VI 25 VI 50 VI 70 VI 100 VI 150 Y41- 200
Nominal Force Tons 25 40 63 100 160 200
Working table height mm 710 710 810 800 830 900
Max.hydraulic pressure Bar 200 200 200 200 200 200
Throat depth mm 350 350 320 400 420 450
Stroke of slide mm 350 350 350 400 500 500
Daylight mm 550 550 600 600 700 800
Speed of slide idle mm/s 50 50 60 60 80 80
pressing mm/s 10 10 15 15 15 10
return mm/s 75 75 90 90 70 70
Effective area of work table L-R mm 500 500 700 700 900 900
F-B mm 560 570 600 600 800 800
Motor Power HP 5 5 7.5 7.5 10 15



Hydraulic C Frame Manufacturers in India

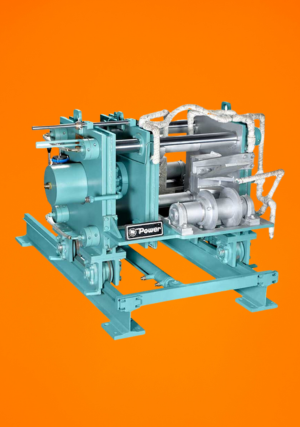

Hot Billet

Hot Billet Heating System, a game-changer in the realm of industrial heating solutions. Engineered with precision and reliability in mind, our system is designed to elevate your manufacturing processes, particularly in the realm of metalworking. Our Hot Billet Heating System boasts advanced technology that ensures uniform heating of billets to precise temperatures, crucial for downstream processes like forging, extrusion, and rolling. With customizable temperature controls and efficient heating mechanisms, you can achieve optimal material properties and product consistency with ease. Built for durability and performance, our system is equipped with safety features and intuitive controls, allowing for seamless integration into your production line. Whether you're working with steel, aluminum, or other metals, our Hot Billet Heating System provides the reliability and efficiency needed to meet the demands of modern manufacturing
